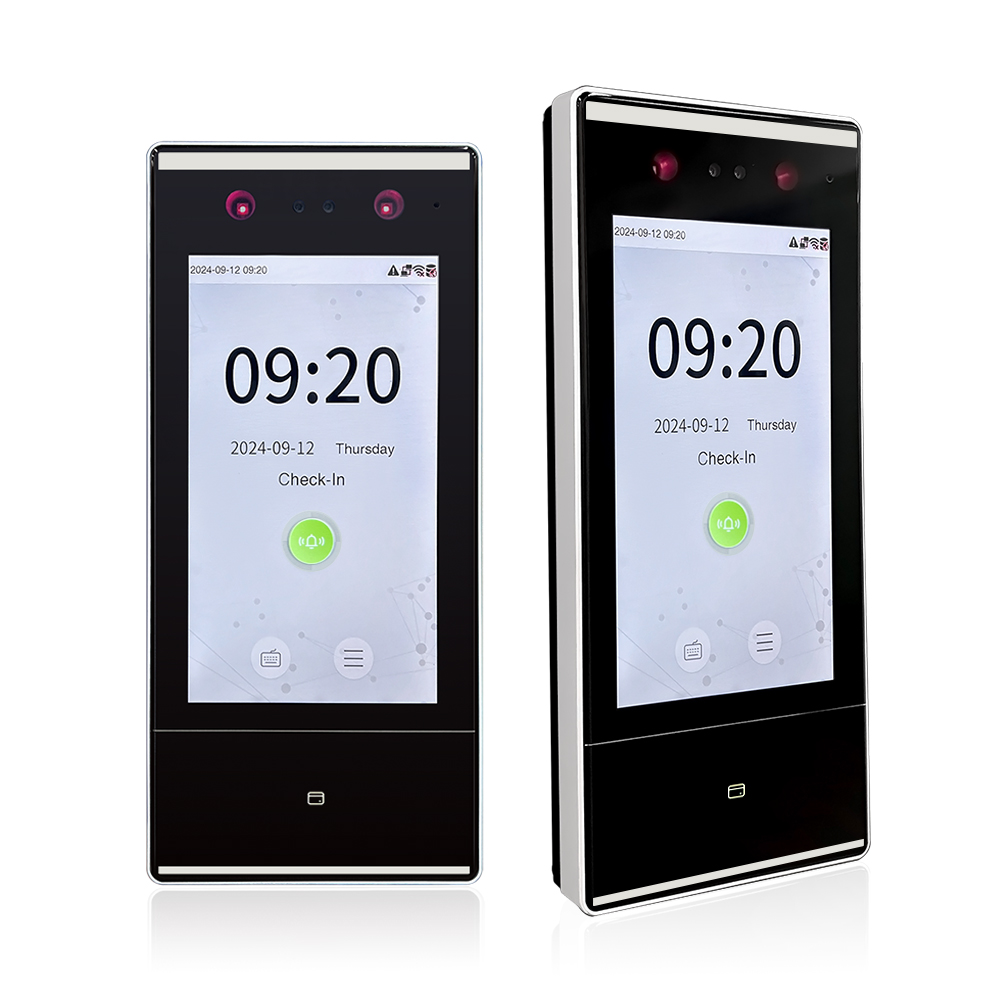

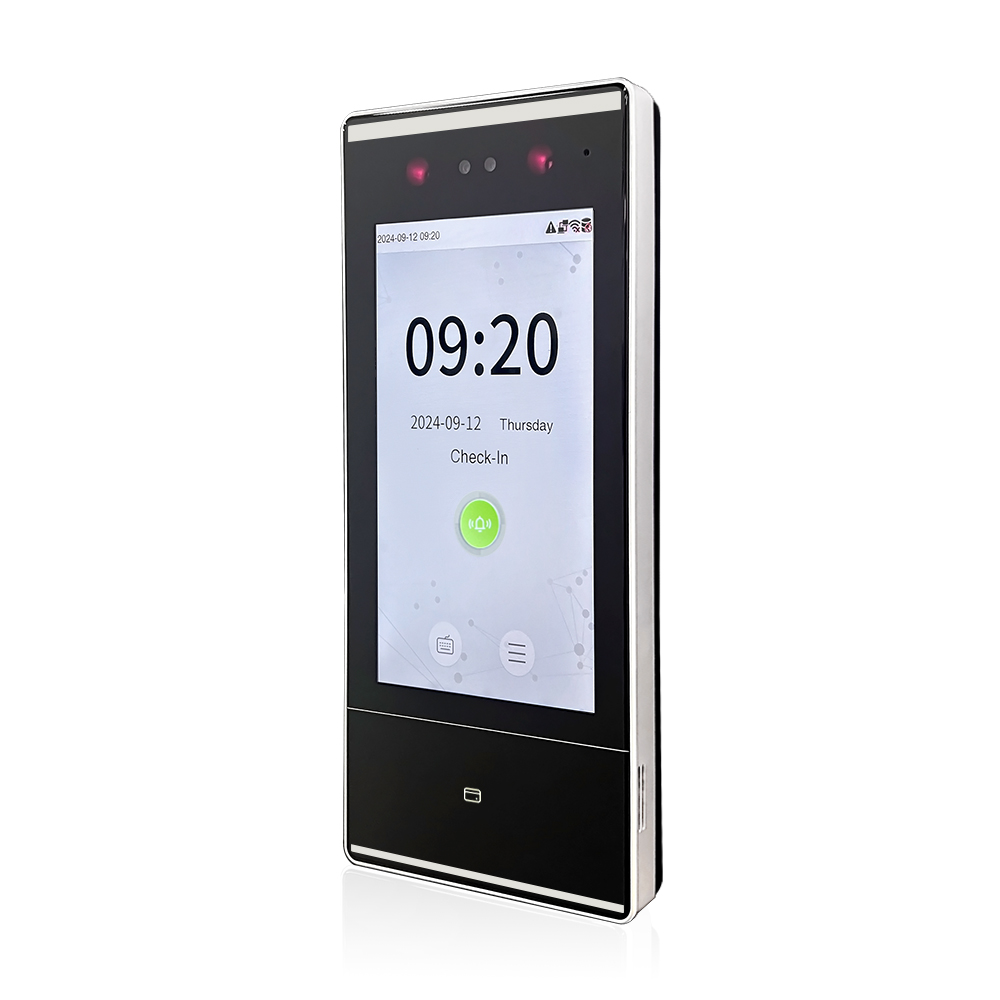

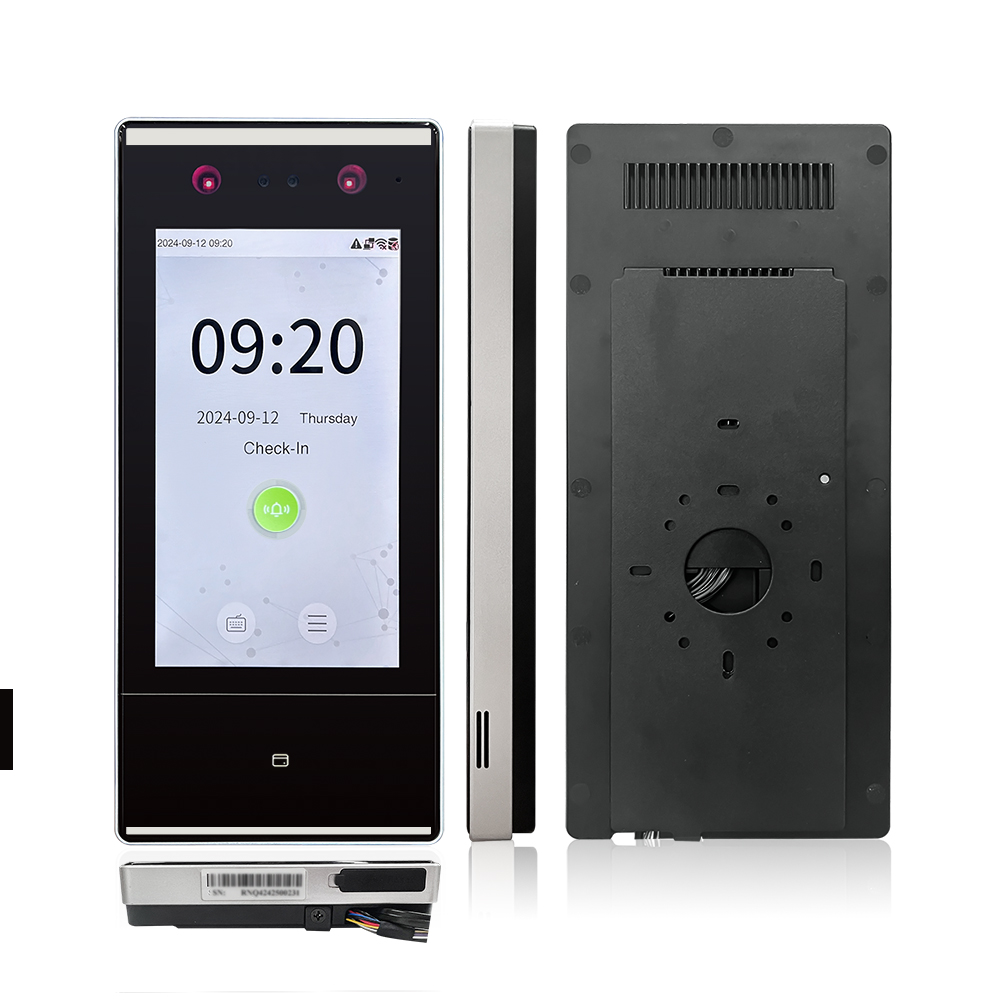

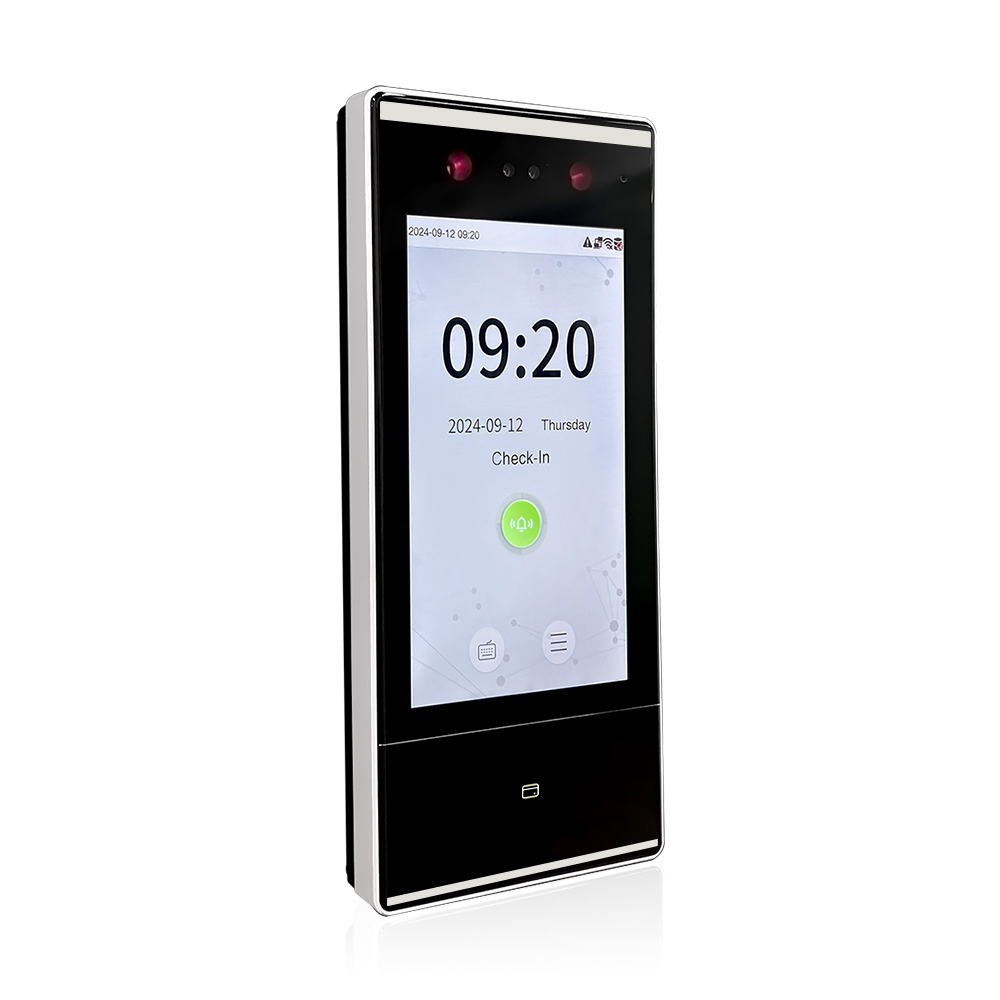

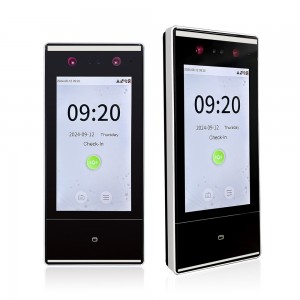

(FA7000) Waterproof Linux TCP/IP Touch screen Dynamic Face Recognition Access Control Time Attendance system
Short Description:
Waterproof Linux TCP/IP Touch screen Dynamic Face Recognition Access Control Time Attendance system FA7000 is Visible light Dynamic Face Recognition access control system With 7 inch TFT Color Touch Screen, 10,000 face capacity, 50,000 cards (standard), 10,000 password, 300,000 logs, Linux Operating System, We provide Free software and SDK.
(FA7000) Waterproof Linux TCP/IP Touch screen Dynamic Face Recognition Access Control Time Attendance system
FA7000 adopts the latest intelligent engineering facial authentication. It supports facial, card authentication with large capacity and speedy authentication, adopts ultimate anti-spoofing algorithm for facial authentication against almost all types of fake photos and video attacks which offering secure biometric authentication. FA7000 is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0). Besides,FA7000 Series supports multiple communication protocols, Its firmware has AC push and can convert to TA push and it is compatible with various AC or TA software.UTime Master or UAccess Master software is compatible.

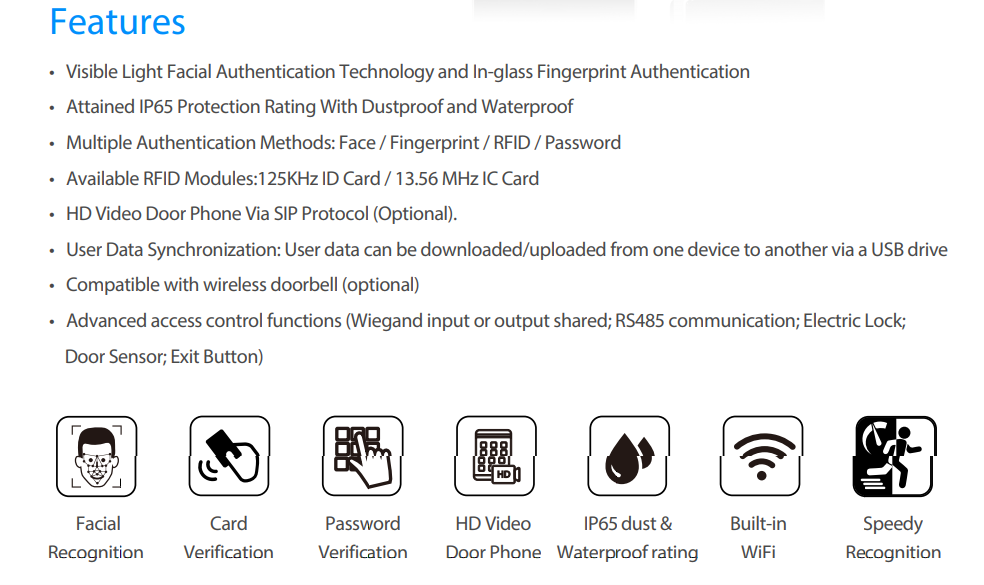

Features:
Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication.
IP65 Protection Rating With Dustproof and Waterproof.
Multiple Authentication Methods: Face/RFID/Password.
Available RFID Card Modules: 125KHz ID EM Card /13.56MHz IC MF Card.
HD Video Door Phone Via SIP Protocol (optional).
User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB driver.
Compatible with wireless doorbell (optional).
Advanced access control functions (Wiegand input or output shared; RS485 communication; Eletric lock;Door sensor;Exit button).
Specifications:
Model FA7000
Display 7-inch TFT Color Touch LED Screen (600*1024)
Camera WDR Binocular Camera@ 1MP
Operating System Linux
Hardware CPU: Dual Core 1GHz,
RAM: 512MB ,ROM: 8GB
Speaker: 8ohm 1 W,Microphone
Authentication method Face / Card/ Password (virtual keypad)
Face Capacity 10,000 (1:N)
Card Capacity 50,000 (1:N) (Standard)
User Capacity 50,000 (1:N) (Standard)
Transaction Capacity 300,000 (1:N)
Max. User Password Length 8 Digits
Biometric Authentication Speed Less than 0.35 sec (Facial Authentication)
Authentication Distance 30cm to 200 cm (Facial Authentication)
False Acceptance Rate (FAR) % FAR＜=0.01% (visible light facial authentication)
False RejectionRate (FRR)% FRR＜=0.02% (visible light facial authentication)
Biometric Algorithm Face V4.0
Card Type ID Card@125Khz(standard)ID Card@125Khz(standard)
IC MF Card @13.56MHz (optional)
Communication TCP/IP, Wi-Fi, Wiegand (Input or Output), RS485, USB: Type A (USB Drive Only), Aux Inputs , Electric Lock, Door Sensor, Exit Button, 12V Output
Standard Functions ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF(Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
Optional Functions IC Card, Wi-Fi, Wireless Doorbell
Access Control Interface RS485 (RS485 Card Reader / Biometric Reader)
Power Supply DC 12V 3A (Optional)
Operating Temperature -5°C to 45°C
Operating Humidity 10% to 90% RH (Non-condensing)
Dimensions 255mm * 115mm * 22.3mm (L*W*H)
Net Weight 0.622 Kg
Supported Software Software: UTime Master / UAccess Master
Installation Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)
Ingress Protection Rating IP65 (waterproof and dustproof
Certifications ISO14001, ISO9001, CE, FCC, RoHS

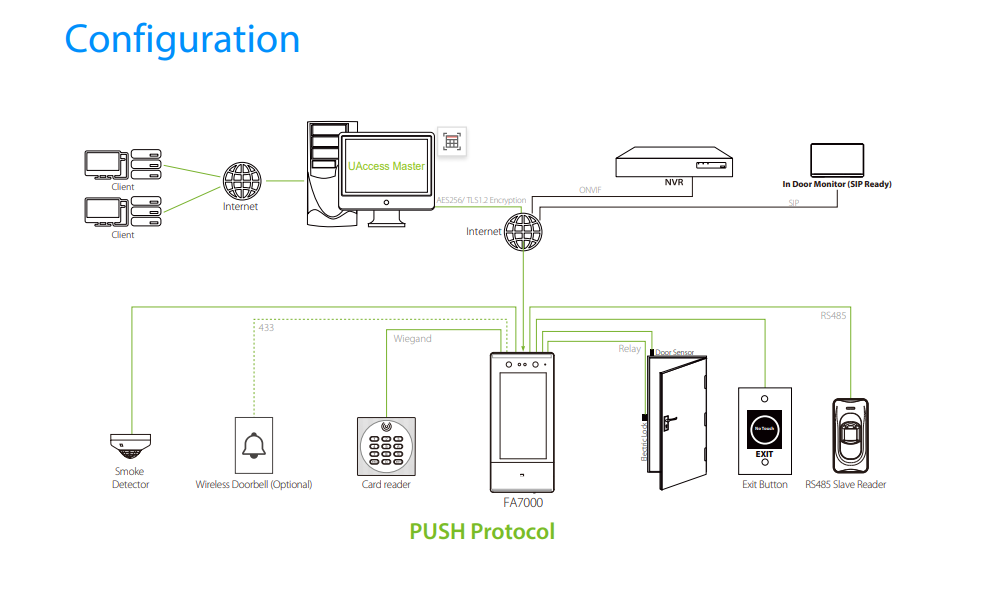

Configuration:
