UP to 50000 Users Large Capacity Face & Card Access Control System With Ingress Protection Rating IP65 (FA7000 Plus)
Short Description:
Granding FA7000 Plus is a new arrival model in 2026 year. The big capacity is a big advantage for FA7000 Plus. FA7000 Plus can support up to 50000 Users Large Capacity Faces and 50000 Cards Access Control System With Ingress Protection Rating IP65 , it is waterproof and weatherproof, dustproof model, suitable for outdoor employees clocking in and clocking out applications.
FA7000 Introduction:
FA7000 Plus Features:
• Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
• Attained IP65 Protection Rating With Dustproof and Waterproof
• Multiple Authentication Methods: Face / RFID / Password
• Available RFID Modules:125KHz ID Card / 13.56 MHz IC Card
• HD Video Door Phone Via SIP Protocol (Optional).
• User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
• Compatible with wireless doorbell (optional)
• Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door Sensor; Exit Button)
FA7000 Plus Specifications:
| Model | FA7000 Plus |
| Display | 7″ TFT Color Touch LED Screen (600*1024) |
| Camera | WDR Binocular Camera @ 1MP |
| Operation System | Linux |
| Hardware | CPU: Dual Core 1GHz,
RAM: 512MB, ROM: 8GB Speaker: 8 ohm 1 W, Microphone |
| Authentication method | Face / Card / Password (Virtual Keypad) |
| Face Capacity | 50,000 (1:N) |
| Card Capacity | 50,000 (1:N) |
| User Capacity | 50,000 (1:N) |
| Transaction Capacity | 300,000 (1:N) |
| Max. User Password Length | 8 Digits |
| Biometric Authentication Speed | less than 0.35 sec (Facial Authentication) |
| Authentication Distance | 30cm to 200cm (Facial Authentication) |
| False Acceptance Rate (FAR) % | FAR ≤ 0.01% (Visible Light Facial Authentication) |
| False Rejection Rate (FRR) % | FRR ≤ 0.02% (Visible Light Facial Authentication) |
| Biometric Algorithm | Face V4.0 |
| Card Type | ID Card @ 125 kHz (Standard) IC Card @ 13.56 MHz (Optional) |
| Communication | TCP/IP, Wi-Fi, Wiegand (Input or Output), RS485, USB: Type A (USB Drive Only), Aux Inputs , Electric Lock, Door Sensor, Exit Button, 12V Output |
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF(Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input) |
| Optional Functions | IC Card, Wi-Fi, Wireless Doorbell |
| Access Control Interface | RS485 (RS485 Card Reader / Biometric Reader) |
| Power Supply | DC 12V 3A (Optional) |
| Operating Temperature | -5°C to 45°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 255mm * 115mm * 22.3mm (L*W*H) |
| Net Weight | 0.622 Kg |
| Supported Software | Software: UTime Master / UAccess Master |
| Installation | Wall-mount (Compatible with Asian Gang-box / Single Gang-Box) |
| Ingress Protection Rating | IP65 (waterproof and dustproof) |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |

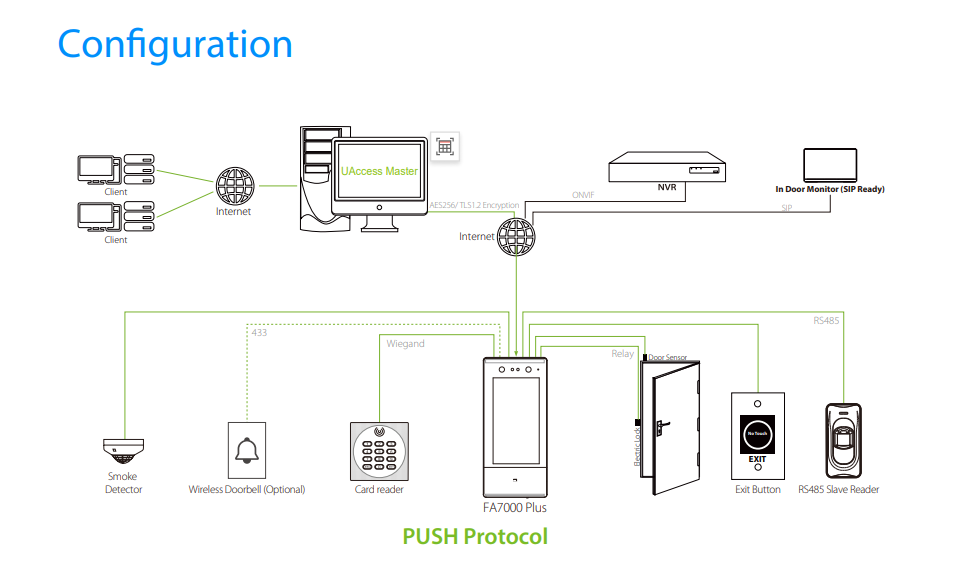

Configuration:

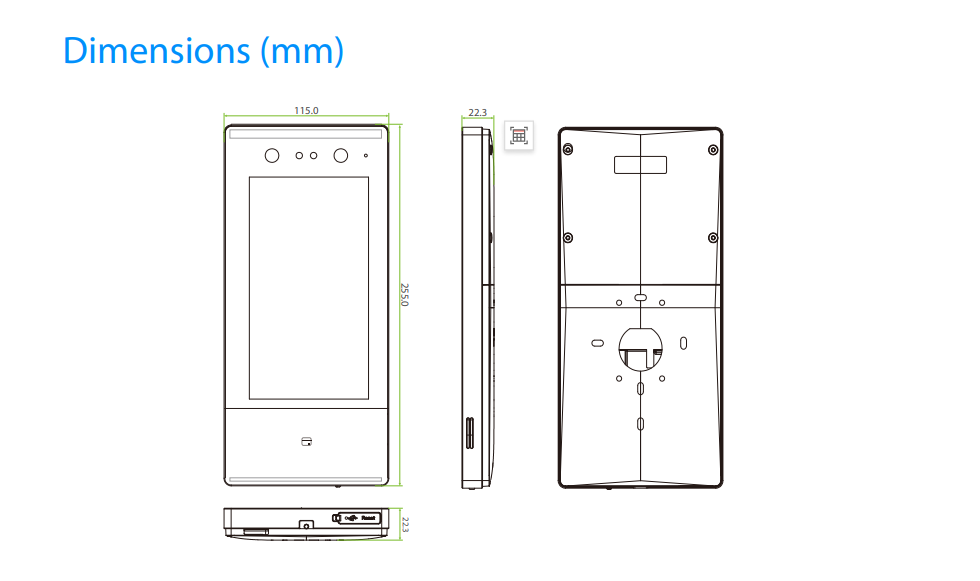

Dimensions:
Web-based Attendance Software : UTime Master
