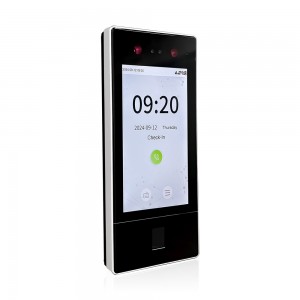

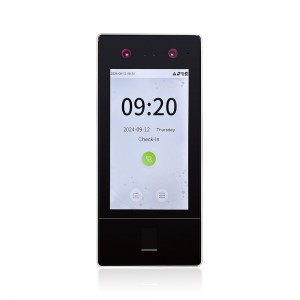

7-inch Facial & Fingerprint Time Clock IP65 Rated Multi-Biometric Authentication for High-Security Attendance System
Short Description:
SIP-Ready Multi-Biometric Access Control Terminal With Video Intercom Capacity 7-inch Touch Screen Visible light Face Recognition With Intelligent Engineering Facial Authentication And In-glass Fingerprint Sensor SenseFace 7A Series adopts the latest intelligent engineering facial authentication and in-glass fingerprint technology. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and video attacks which offering secure biometric authentication. SenseFace 7 Series is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0). Besides, SenseFace 7 Series supports multiple communication protocols, Its firmware has AC push and can convert to TA push and it is compatible with various AC or TA software. It can change to BEST protocol to link with ZKBio Zlink (AC module).
7-inch Facial & Fingerprint Time Clock IP65 Rated Multi-Biometric Authentication for High-Security Attendance System

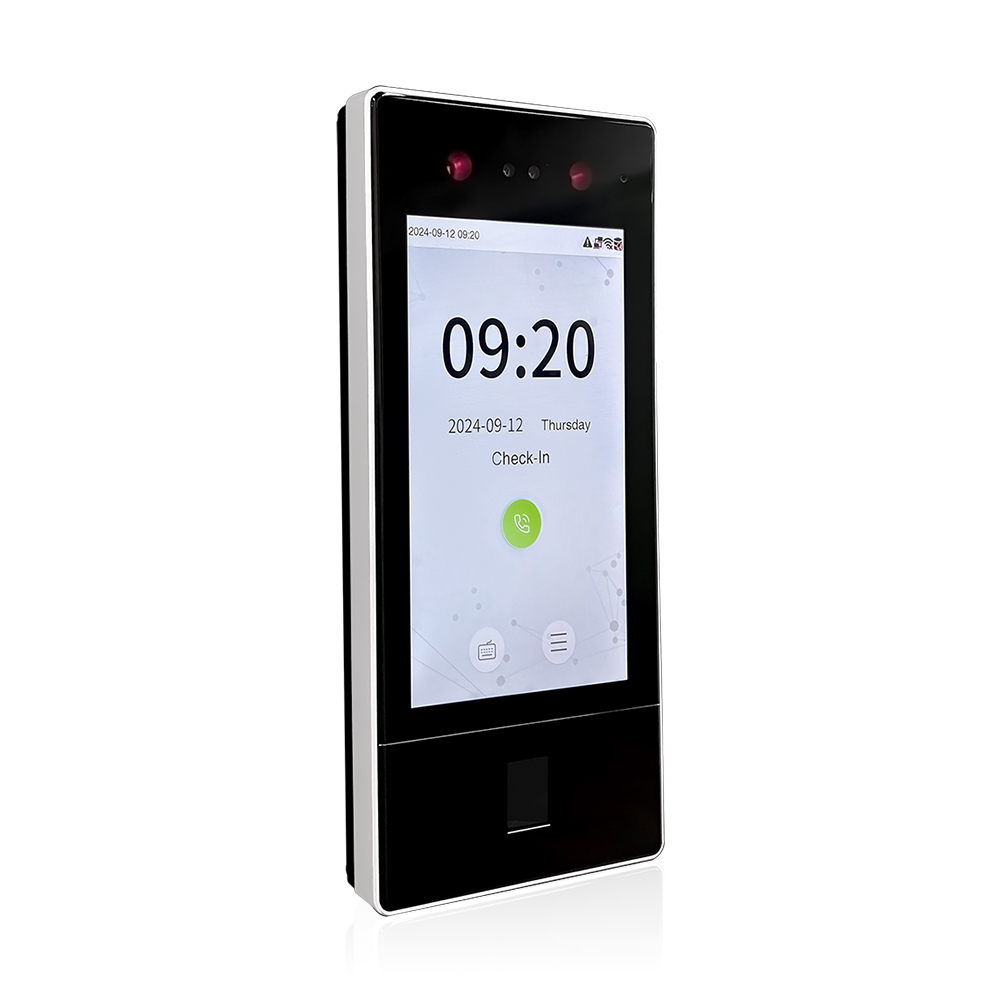

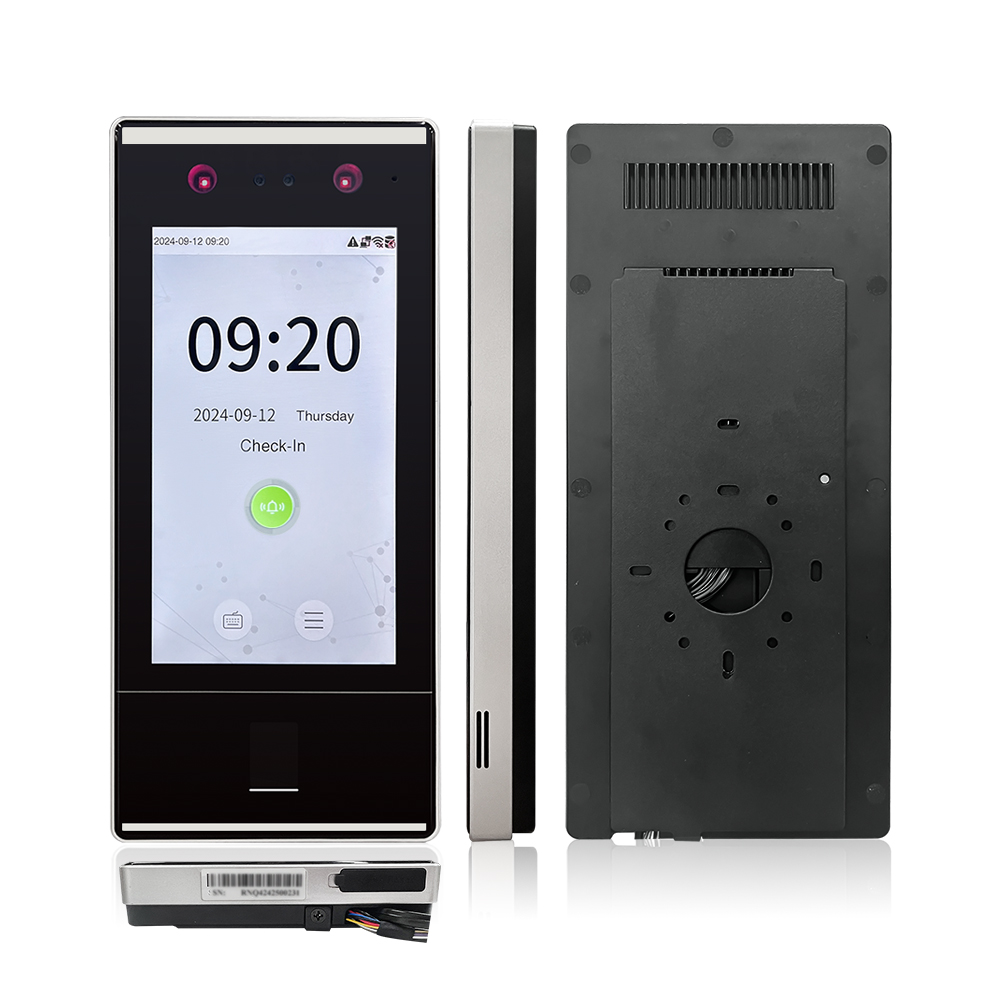

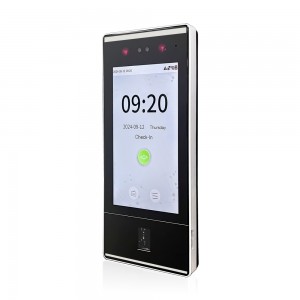

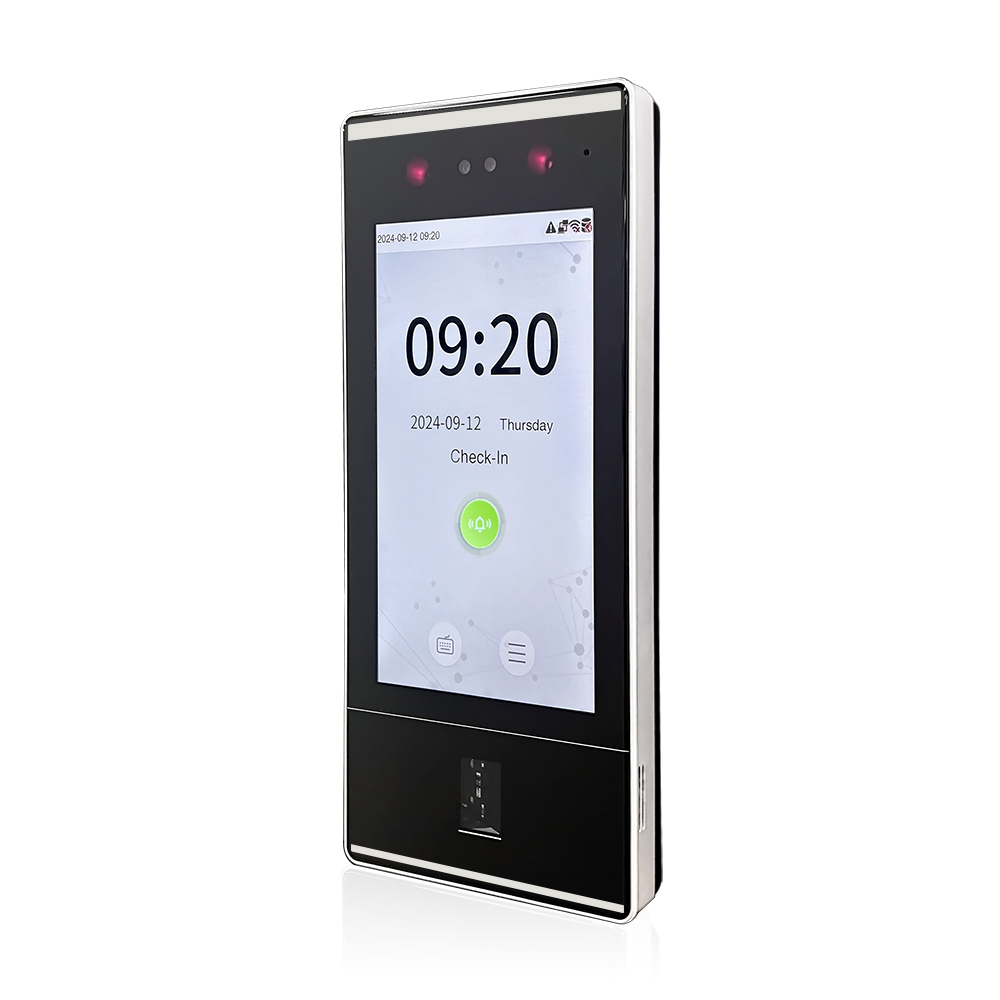

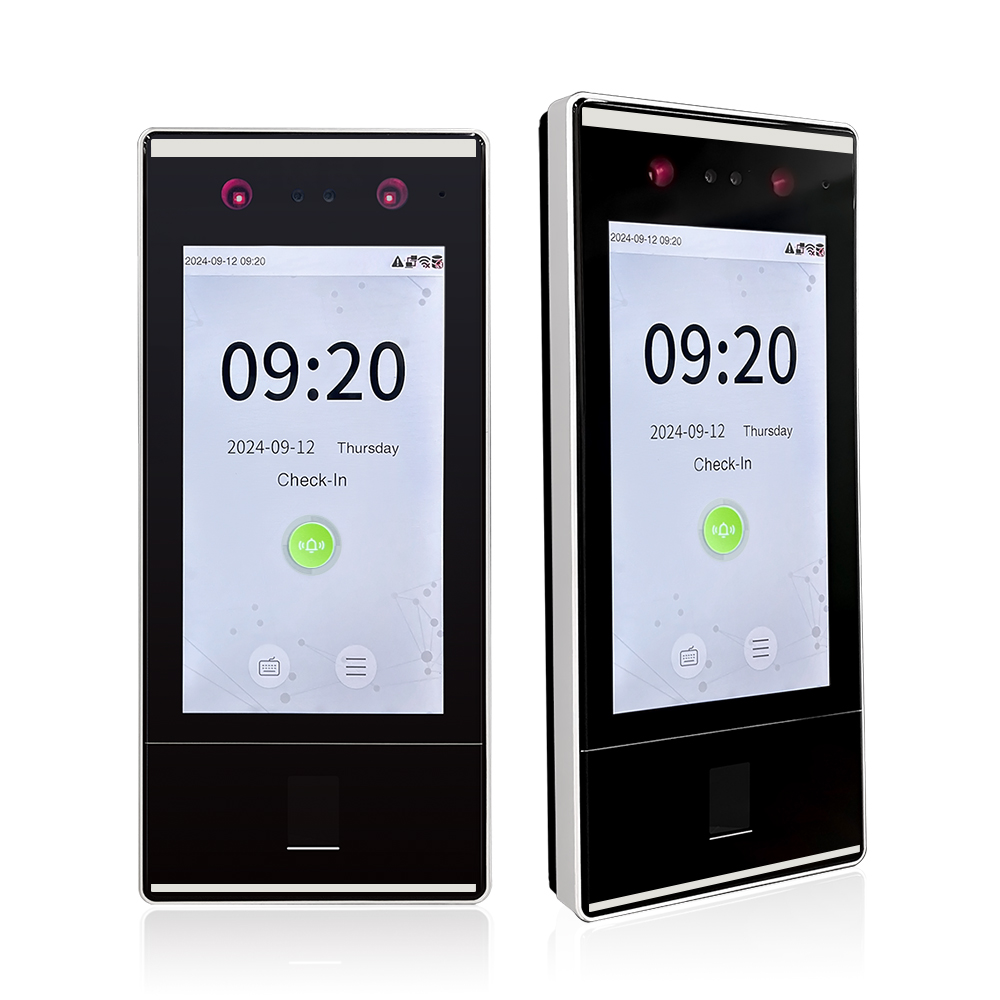

Model: FacePro7
Introduction:
SIP-Ready Multi-Biometric Access Control Terminal With Video Intercom Capacity
7-inch Touch Screen Visible light Face Recognition With Intelligent Engineering Facial Authentication And In-glass Fingerprint Sensor
FacePro7 Series adopts the latest intelligent engineering facial authentication and in-glass fingerprint technology. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate anti-spoofing algorithm for facial authentication against almost all types of fake photos and video attacks which offering secure biometric authentication. FacePro7 Series is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0). Besides, FacePro7 Series supports multiple communication protocols, Its firmware has AC push and can convert to TA push and it is compatible with various AC or TA software. It can change to BEST protocol to link with ZKBio Zlink (AC module).

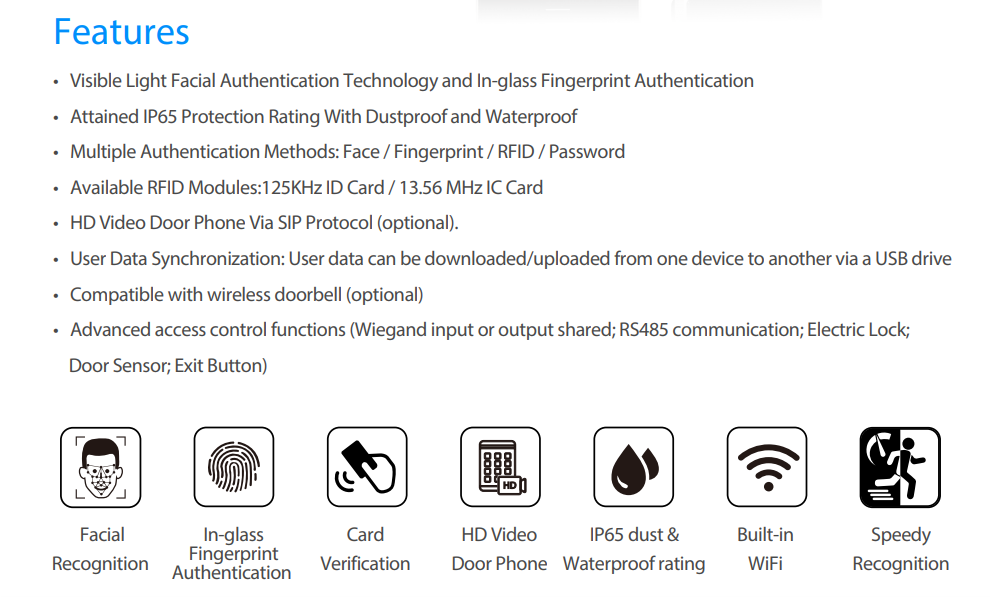

Features:
Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication.
IP65 Protection Rating With Dustproof and Waterproof.
Multiple Authentication Methods: Face/Fingerprint/RFID/Password.
Available RFID Card Modules: 125KHz ID EM Card /13.56MHz IC MF Card.
HD Video Door Phone Via SIP Protocol (optional).
User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB driver.
Compatible with wireless doorbell (optional).
Advanced access control functions (Wiegand input or output shared; RS485 communication; Eletric lock;Door sensor;Exit button).
Specifications:
| Model | Facepro7 |
| Display | 7-inch TFT Color Touch LED Screen (600*1024) |
| Camera | WDR Binocular Camera@ 1MP |
| Operating System | Linux |
| Hardware | CPU: Dual Core 1GHz, RAM: 512MB, ROM: 8GB
Speaker: 8 ohm 1 W, Microphone, Fingerprint Sensor: In-Glass Fingerprint (Z-ID) |
| Authentication method | Face / Fingerprint / Card/ Password (virtual keypad) |
| Face Capacity | 10,000 (1:N) |
| Fingerprint Capacity | 10,000 (1:N) (Standard) |
| Card Capacity | 50,000 (1:N) (Standard) |
| User Capacity | 50,000 (1:N) (Standard) |
| Transaction Capacity | 300,000 (1:N) |
| Max. User Password Length | 8 Digits |
| Biometric Authentication Speed | Less than 0.35 sec (Facial Authentication) |
| Authentication Distance | 30cm to 200 cm (Facial Authentication) |
| False Acceptance Rate (FAR) % | FAR＜=0.01% (visible light facial authentication) |
| False RejectionRate (FRR)% | FRR＜=0.02% (visible light facial authentication) |
| Biometric Algorithm | Face V4.0 |
| Card Type | ID Card@125Khz(standard)ID Card@125Khz(standard)
IC MF Card @13.56MHz (optional) |
| Communication | TCP/IP, Wi-Fi, Wiegand (Input or Output), RS485, USB: Type A (USB Drive Only), Aux Inputs , Electric Lock, Door Sensor, Exit Button, 12V Output |
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF(Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input) |
| Optional Functions | IC Card, Wi-Fi, Wireless Doorbell |
| Access Control Interface | RS485 (RS485 Card Reader / Biometric Reader) |
| Power Supply | DC 12V 3A (Optional) |
| Operating Temperature | -5°C to 45°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 255mm * 115mm * 22.3mm (L*W*H) |
| Net Weight | 0.622 Kg |
| Supported Software | Software: UTime Master / UAccess Master |
| Installation | Wall-mount (Compatible with Asian Gang-box / Single Gang-Box) |
| Ingress Protection Rating | IP65 (waterproof and dustproof |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |

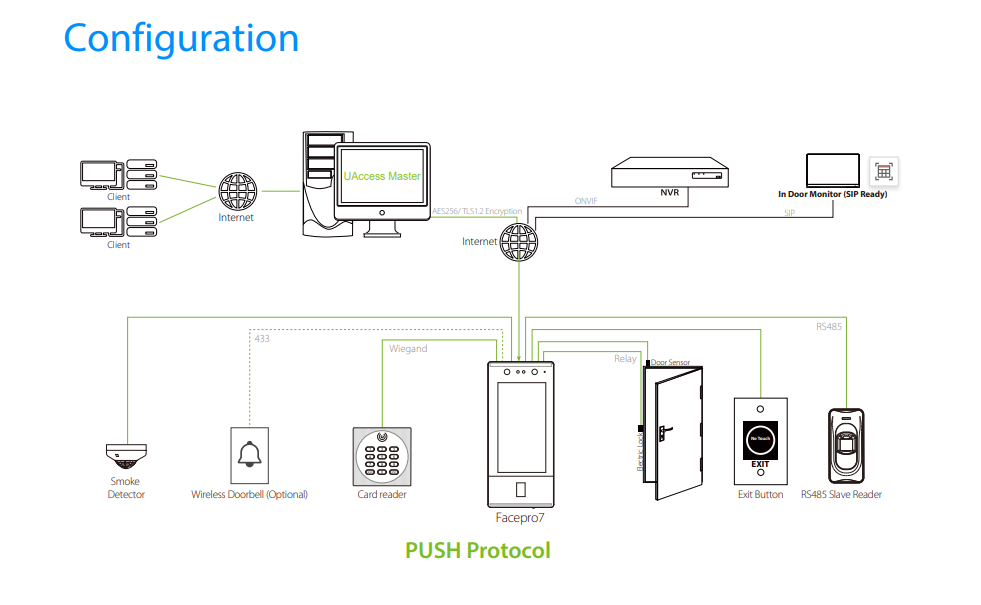

Configuration:

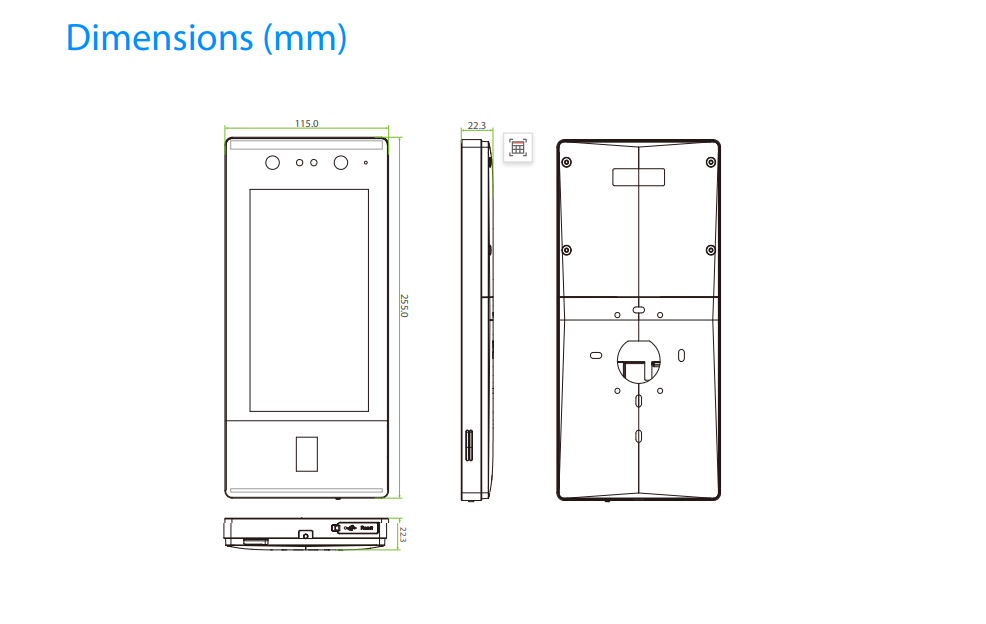

Dimensions:
Software:
Web-based attendance software UTime Master to manage biometric time clock devices remotely. The UTime Master will be installed on central server. It has time attendance function, simple access control function, payroll function, also we have visitor management module for UTimeMaster.
The UTime Master also have real-time management, attendance data can be transferred to UTime Master in real time immediately once card punching or fingerprint or face recognized. UTime Master also have device, user management. Utime Master also support different languages such as English, Spanish, French, Portuguese,Arabic, Thai,and so on.
