Android 10.0 System Waterproof Facial Recognition Fingerprint Time Clock With large capacity 50000 faces and Backup Battery
Short Description:
The HH1, a handheld mobile time and attendance terminal designed for versatile use. With the rechargeable 5200mAh Li-ion battery, HH1 can operate for 5 hours without recharging. Also, the high-capacity battery provides ample power to support HH1 to perform hybrid biometric verifications, including facial recognition, fingerprint verification, NFC, and QR code management.Our Web-based time and attendance software UTime Master can manage the Horus H1.
Android 10.0 System Facial Recognition Fingerprint Time Clock With large capacity 50000 faces and Backup Battery
Model: HH1-FP
Type: Hybrid Biometric Face and Fingerprint Handheld Mobile Time Attendance Terminal
Brief Introduction:
HH1, a handheld mobile time and attendance terminal designed for versatile use. With the rechargeable 5200mAh Li-ion battery, HH1 can operate for 5 hours without recharging. Also, the high-capacity battery provides ample power to support HH1 to perform hybrid biometric verifications, including facial recognition, fingerprint verification, NFC, and QR code management.
Features:
5.5 inch IPS LCD HD display(720*1440)
5 MP+13 MP front and rear camera
Support 2.4GHz/5.0GHz Wi-Fi, Bluetooth, 4G, GPS, NFC
Embedded 5200mAh li-ion battery, support up to 5 operating hours
Support high-speed and accurate QR code/barcode scanning
Facial recognition distance: 0.3m to 2m; Facial recognition speed<1s;User Facial recognition accuracy rate ≥99%
Support mask detection
A hexagonal rugged casing with tempered glass surface and achieved IP65 protection rating
Specifications:
Systems
| Operation System | Android 10.0 |
| CPU | 64 bit Octa-core Cortex-A73 CPU,2.0GHz |
| Storage | 4GB RAM/64GB ROM, Micro SD card (max 256GB expansion) |
| SDK | PUSH SDK ,TA PUSH SDK,connect to Utime Master |
| Display | 5.5 inch IPS Capacitive LCD touch screen |
| Screen Resolution | 720*440 |
| Camera | Dual Lens Rear Camera (13 megapixels); Front Camera (5 megapixels) |
| QR Code & Barcode | QR Code,PDF417,Data Matrix,MicroPDF417,Aztec Scanning in third-party development projects |
| Card Type | ISO1443 & 15693 ,NFC-IP1,NFC-IP2 |
Capacity
| User Capacity | 50,000 |
| Face Capacity | 50,000 |
| Fingerprint Capacity | 30,000 |
| Card Capacity | 50,000 |
| Logs Capacity | 1,000,000 |
| Interface | 1*USB 2.0 Type C |
| Protection Level | IP65 |
| Supported Software | UTime Master, the web-based time attendance real time solution software |
| Firmware Functions | Push, Schedule Bell, Automatic Status Switch, Record Query, Groups, Holidays, DST, Workcode,
Duress Mode (Password &Fingerprint), Customization of Wallpaper & Screen Saver |
| Languages | English,Spanish,Portuguese,Latin American Spanish, Russian,Farsi, Thai, Vietnamese,
Korean, Japanese,Traditional Chinese, Simple Chinese |

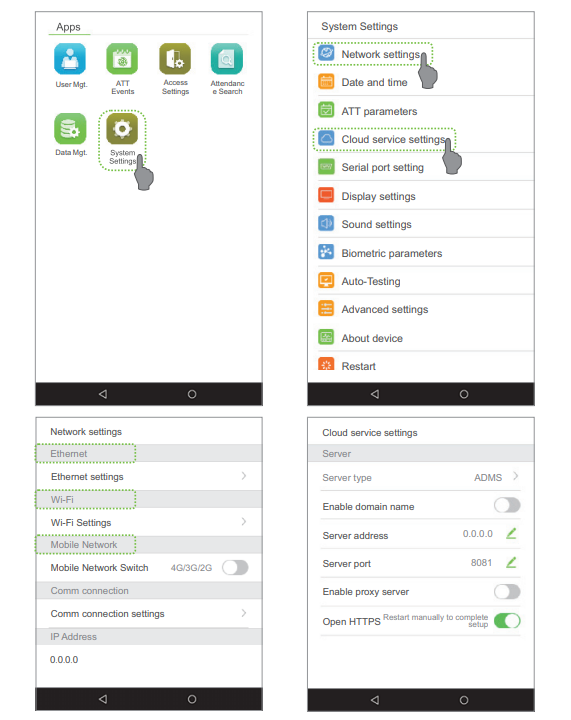

Communication:
| 3G/4G | TDD LTE Band 38,39,40,41 FDD LTE BAND 1,2,3,4,5,7,8,12,17,20
WCDMA(850 /1900 /2100MHz) GSM /GPRS /Edge (850 /900 /1800 / 1900MHz)
|
| WLAN | 2.4GHz/ 5.0GHz Dual Frequency IEEE 802.11a /b /g /n /ac |
| Bluetooth | Bluetooth Class v2.1+EDR , Bluetooth v3.0+HS,Bluetooth v4.2 |
| GPS | GPS (embedded A-GPS), Glonass (accuracy distance of 5m) |
Performance
| Card Reading Distance (NFC) | 3cm-5cm max. |
| Biometric Authentications | Face, Fingerprint |
| Facial Recognition Algorithm | Face 5.6.2 |
| Facial Recognition Distance | 0.3m to 2m |
| Facial Recognition Speed | less than 1second |
| Facial Recognition Accuracy Rate | more than 99% |
| Fingerprint Sensor Type | Semiconductor |
| Fingerprint Comparison Time | less than 0.5 seconds |
General
| Power Supply | 5v 2A |
| Embedded Li-ion Battery | 5200mAh |
| Casing Materials | ABS Plastic ,tempered glass surface |
| Operating Temperature | -20 Celsius to 50 Celsius |
| Storage Temperature | -20 Celsius to 70 Celsius |
| Working Humidity | less than 90% RH |
| Storage Humidity | less than 90% RH |
| Operating Environment | Outdoor |
| Gross Weight | 400g |
| Weight with Packaging | 700g |
| Dimensions (H*W*D) | 170mm*80mm*20mm (6.7in*3.1in*0.8in) |
| Certificates | ISO9001,ISO14001,CE,FCC |

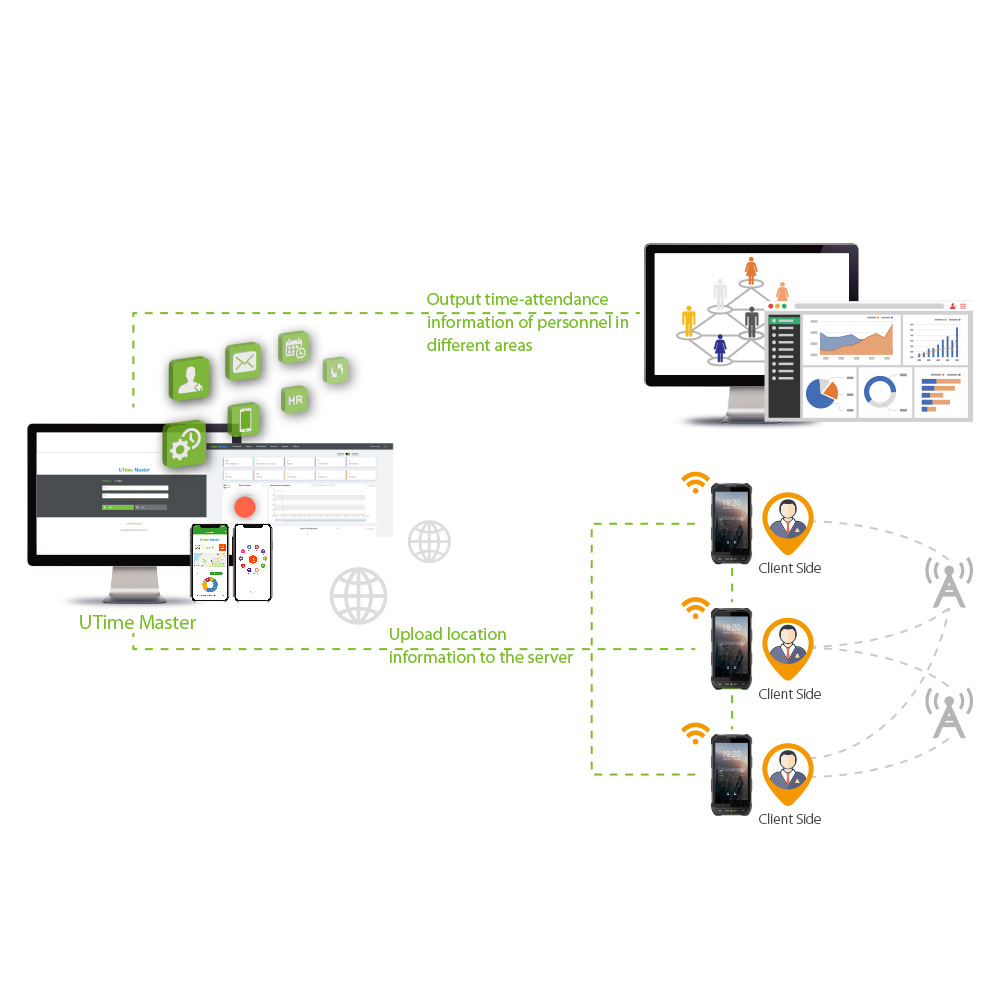

Working Application

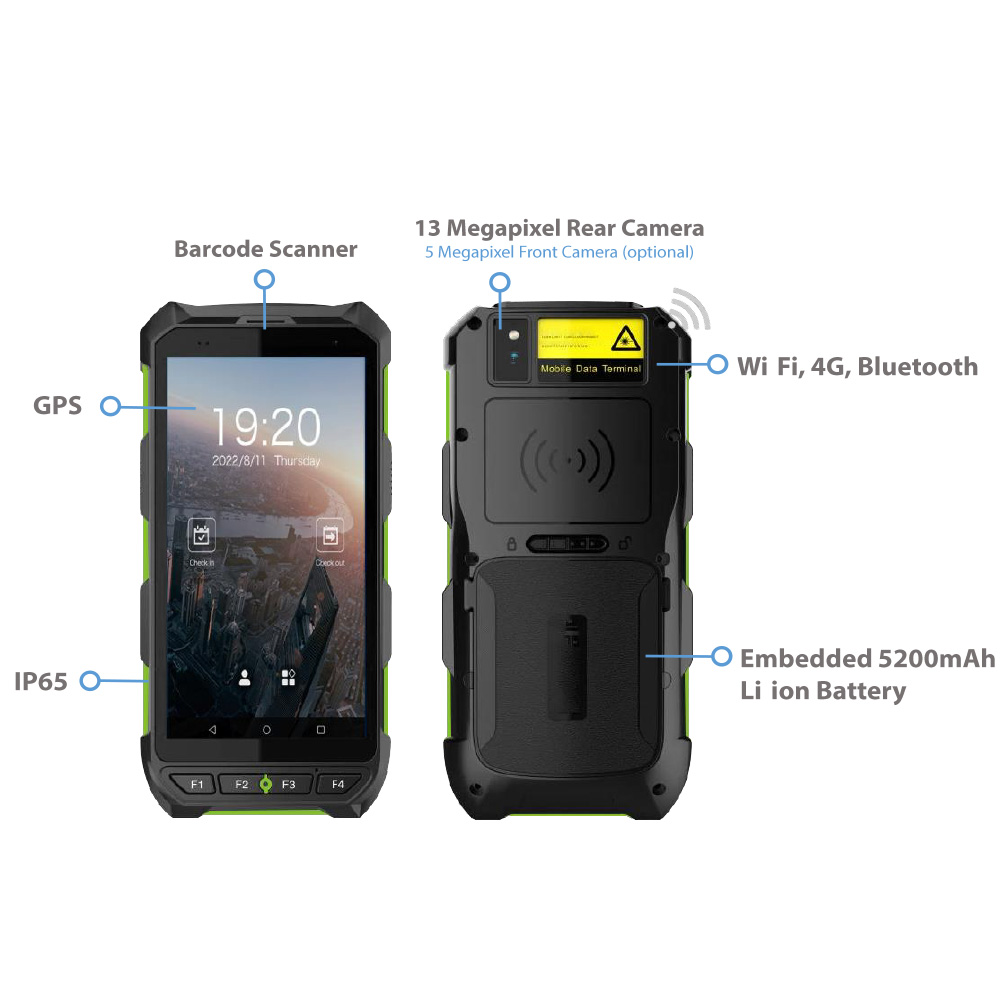

Stucture:
