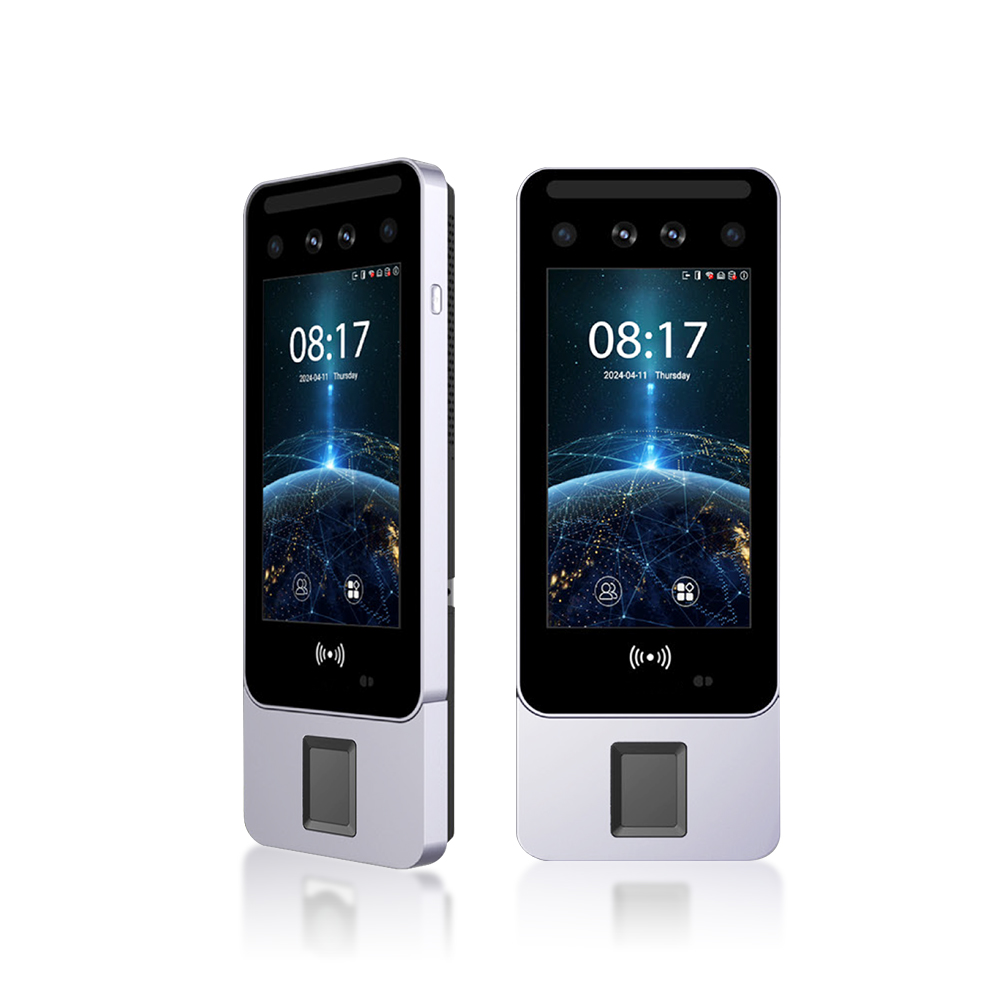

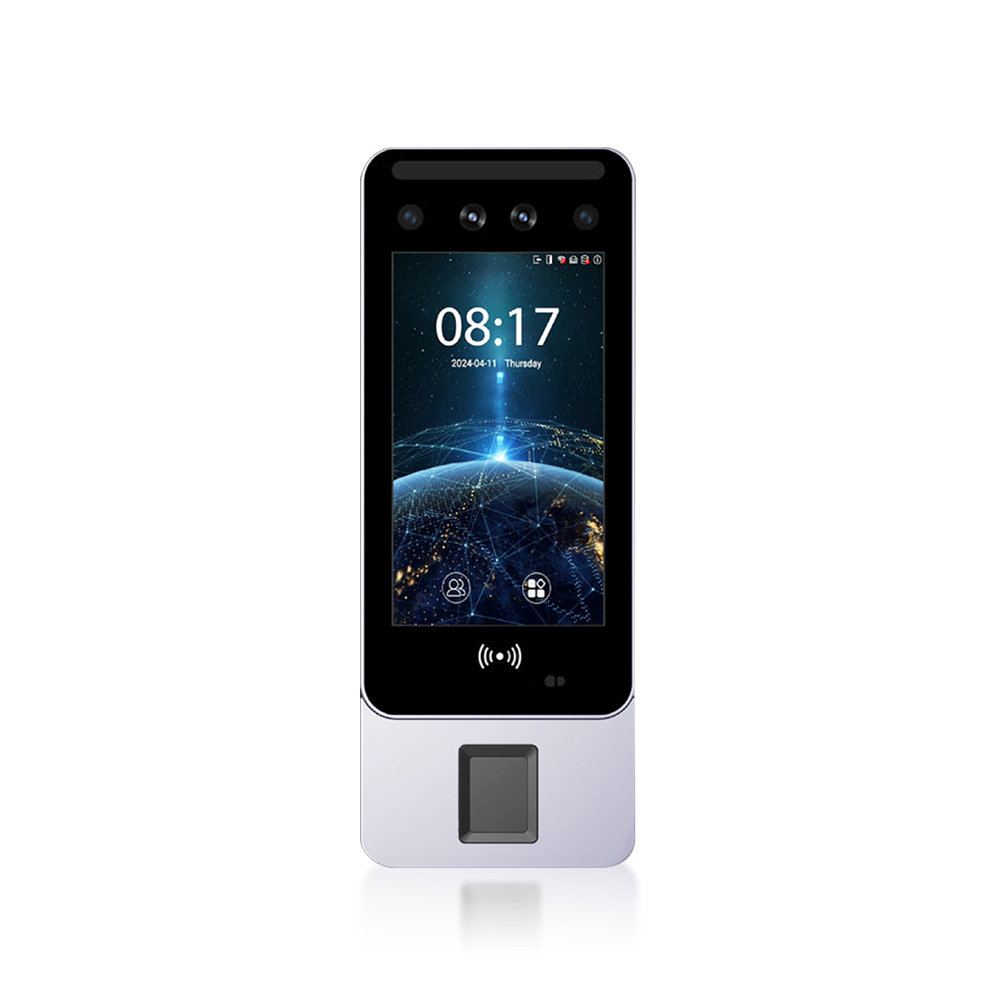

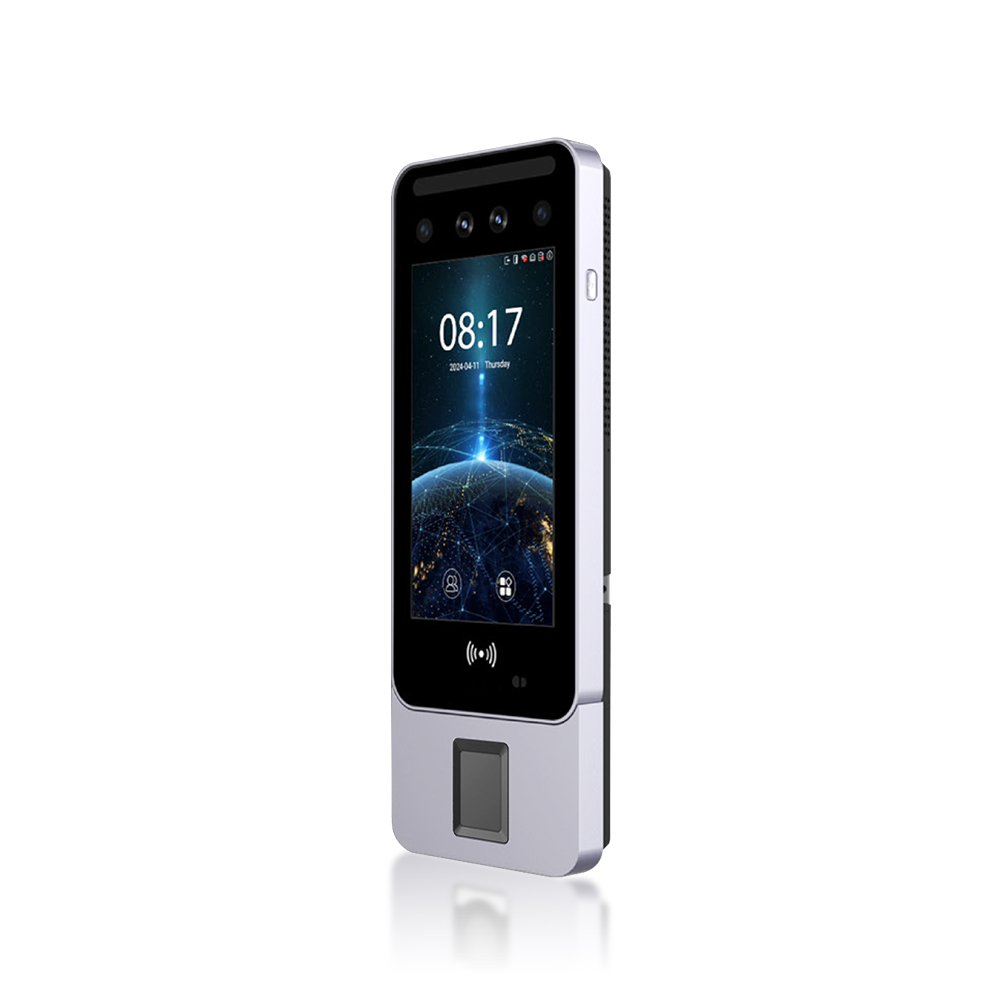

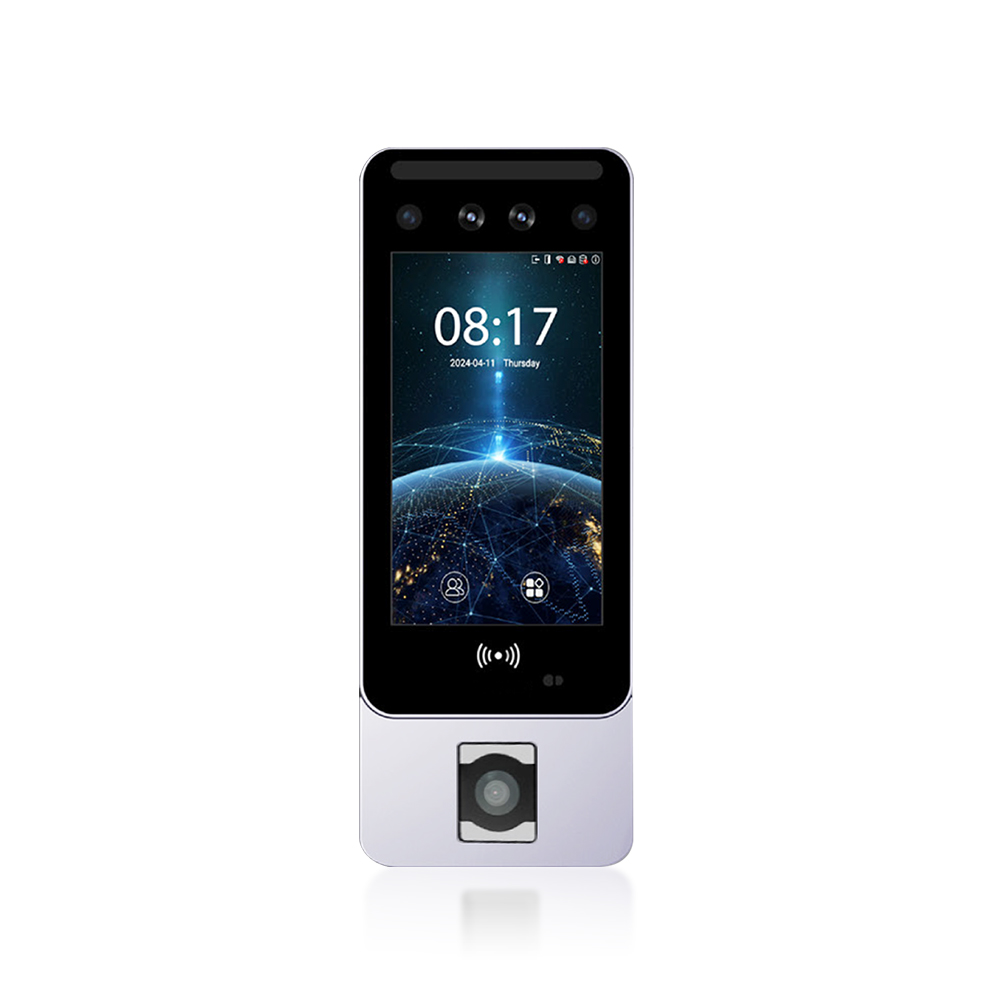

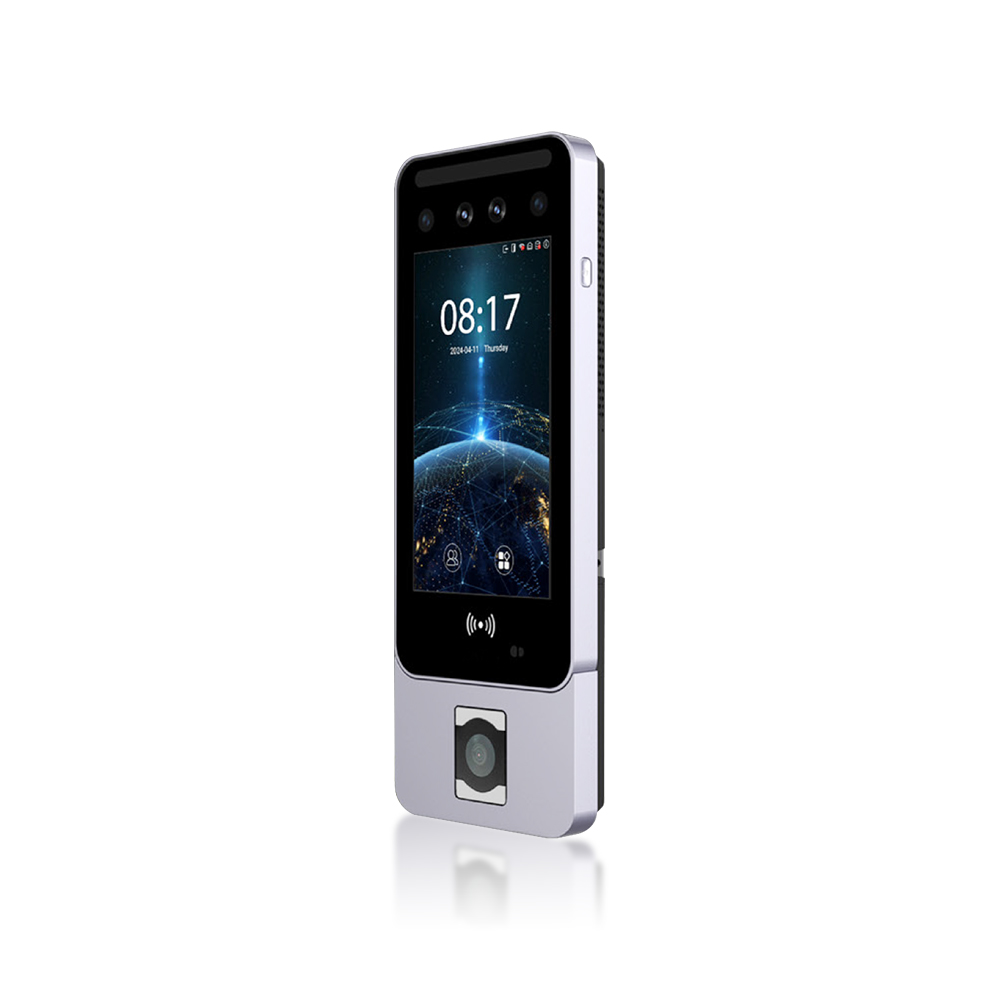

Android Biometric Terminal Horus E2-FP Visible Light Facial Recognition Fingerprint Time Attendance Access Control With 4G and WIFI
Short Description:
Introduction: The Horus E2 from ZK-Teco is an Android-based multi-biometrics terminal designed to streamline both time attendance and access control. Leveraging ZK's cutting-edge technology, the Horus E2 supports a variety of authentication methods, including facial authentication, fingerprint scanning, multi-tech card authentication, and QR code scanning. These features meet the diverse needs of users across various environments. The device ensures reliable connectivity through dual-frequency Wi-Fi and 4G LTE, facilitating seamless network integration. The Horus E2 is compatible with Android 10 operating system, which simplifies the integration with third-party applications. Additionally, it includes an optional removable backup battery, enhancing its reliability and making it an ideal solution for temporary site management.
Android Biometric Terminal Horus E2-FP Visible Light Facial Recognition Fingerprint Time Attendance Access Control With 4G and WIFI
Introduction:
The Horus E2 from ZK-Teco is an Android-based multi-biometrics terminal designed to streamline both time attendance and access control. Leveraging ZK’s cutting-edge technology, the Horus E2 supports a variety of authentication methods, including facial authentication, fingerprint scanning, multi-tech card authentication, and QR code scanning. These features meet the diverse needs of users across various environments. The device ensures reliable connectivity through dual-frequency Wi-Fi and 4G LTE, facilitating seamless network integration. The Horus E2 is compatible with Android 10 operating system, which simplifies the integration with third-party applications. Additionally, it includes an optional removable backup battery, enhancing its reliability and making it an ideal solution for temporary site management.
Features:
• Supports 4G LTE, WiFi, TCP/IP (RJ45), and Bluetooth 4.1.
• Supports facial recognition, fingerprint scanning, RFID, QR code (optional), and PIN entry.
• Supports dual-frequency (125kHz and 13.56MHz) card module (standard).
• Ensures encryption of all biometric data and personal information transfers, meeting the AES-256 standard.
• Support web-based time and attendance management software UTime Master or access control software UAccess Master.
Specifications:
| Model | Horus E2-FP |
| Display | 5-inch TFT Color Touch LCD Screen (720*1280) |
| Camera | Dual Camera @ 2MP |
| Hardware | CPU: Octa-core @ 2.0 GHz
RAM: 2GB; ROM: 16GB Speaker: 7ohm @1.14W Sensitivity: -36 dB/Omni-directional/ Signal-to-Noise Ratio: 60 dB/ Impedance: 2.2KΩ Supplement Light: Yes |
| Authentication method | Fingerprint / Face / Card / Password (Virtual Keypad)/ QR Code (Optional) |
| Face Capacity | 20,000(1:N) |
| Fingerprint Capacity | 30,000 (1:N) |
| Card Capacity | 50,000(1:N) |
| User Capacity | 50,000 |
| Transaction Capacity | 200,000 |
| Max. User Password Length | 8 Digits |
| Biometric Authentication Speed | less than 0.5 sec (Fingerprint)
less than 1 sec (Facial Authentication) |
| Touchless Biometric Authentication Distance | 30 cm to 100 cm (Facial Authentication) |
| False Acceptance Rate (FAR) % | FAR≤ 0.01% ( Visible Light Facial Authentication)
FAR≤ 0.0001% ( Fingerprint) |
| False Rejection Rate (FRR) % | FRR ≤ 0.02% ( Visible Light Facial Authentication)
FRR≤ 0.01% ( Fingerprint ) |
| Biometric Algorithm | Face VX5622
Finger VX10.0 |
| Card Type | ID Card@125 kHz & IC Card@13.56 MHz (Standard) |
| Communication | Wi-Fi (IEEE 802.11 ac/a/b/g/n) @ 2.4 GHz & 5G GHz TCP/IP*1, Bluetooth: BLE 4.1, Wiegand (Input & Output)*1, RS485 *1 Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, |
| Mobile Communication | Support 4G, Support GSM/WCDMA/TDSCDMA/LTE/TDD GSM4, W(B1/2/4/5/8);TD(34/39) PRX(1/2/3/4/5/7/8/12/17/20/28AB/34/38/39/40/41) DRX(1/2/3/4/5/7/8/12/17/20/38/39/40/41) |
| Standard Functions | ADMS, Photo Capture, Event Photo Capture, Holidays, Anti-Passback, Schedule Bell, Record Query, Tamper Switch Alarm, Multiple Authentication Methods, AC Push and TA Push Protocol Switch, T9 Keyboard (Input) |
| Access Control Interface | RS485 ( RS485 Card Reader / Biometric Reader) |
| Supported Software | UtimeMaster/ UAccessMaster |
| Installation | Wall-mount (Compatible with Asian Gang-box / Single Gang-Box) |
| Power Supply | DC 12V 3A |
| Operating Temperature | -10°C to 45°C |
| Operating Humidity | 0% to 80% RH (Non-condensing) |
| Dimensions | 216mm * 82mm * 24.5mm (L*W*H) |
| Gross Weight | 1.06 Kg |
| Net Weight | 0.46 Kg |
| Certifications | CE, FCC, RoHS |
