Facial Recognition Fingerprint Time Attendance System with Temperature Detector (FA210+TDM01)
Short Description:
The FA210 with Temperature Detector TDM01, Facial Recognition Fingerprint Time Attendance System with External USB Temperature Detector, is a newly launched model with fingerprint and face recognition technologies. It supports multiple verification methods including face, fingerprint, card(optional), password, combinations between them and basic access control functions. User verification is performed in less than 1 second, which streamlines the process of access. The communication between the FA210 a nd PC is by TCP / IP or USB interface for manual data transfer. Its sleek design fits perfectly in any environment. It can be optional with Wireless WIFI.
Quick Details
Place of Origin: Shanghai, China
Brand Name: GRANDING
Model Number: FA210/ID and TDM01
Type: Face and Fingerprint Time attendance Access Control with Temperature Detector
Fingerprint Sensor: Optical Sensor
Display: 2.8 Inches TFT Screen
Face Capacity: 1500Faces
Fingerprint Capacity: 2000Fingerprints
Log Capacity: 100,000Records
RFID Card Capacity: 2000Cards
Communication: TCP/IP, USB-Host, Wi-Fi (Optional)
Wiegand Out: Yes
Warranty: Two Years Warranty
Brief Introduction

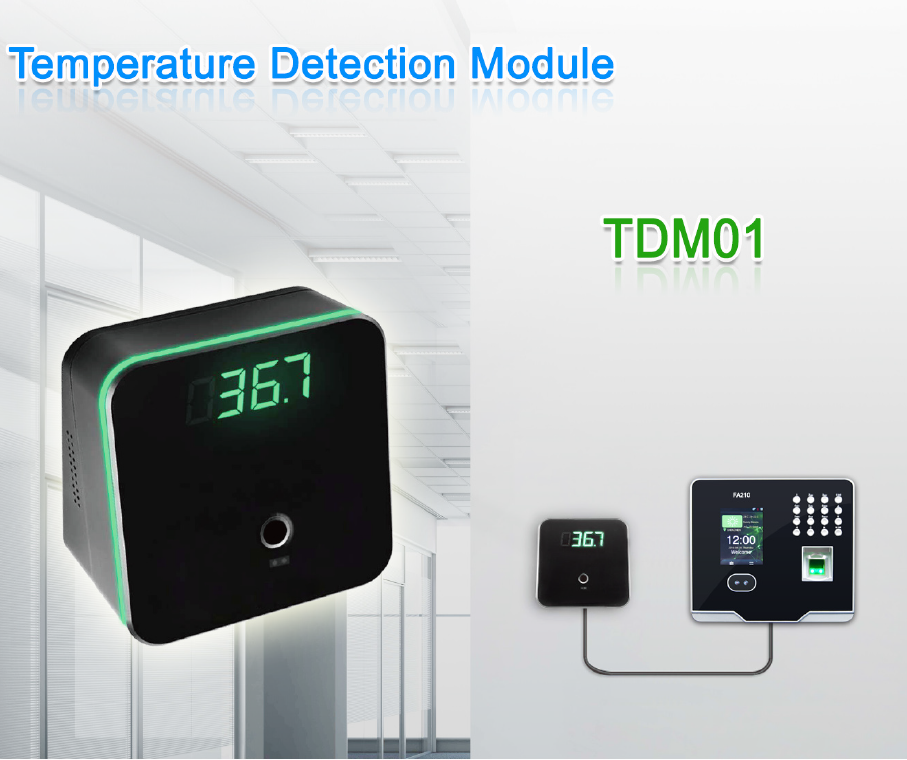

The FA210 with temperature detector TDM01, Facial Recognition Fingerprint Time Attendance System with external USB connected temperature detector.
Product Features
USB Communication, plug and play.
Temperature Measurement Distance: 3cm to 5cm.
Temperature Measurement Range: 32.0-42.9℃ or 89.6-109.22℉.
Deviation: ±0.3℃ or ±0.54℉.
TDM01 is an indoor USB Module used for Temperature Detection, application to both Time Attendance and Access Control devices.
Specifications
FA210
|
Face Capacity |
1,500Faces |
|
Fingerprint Capacity |
2,000Fingerpirnts |
|
ID Card Capacity |
2,000Cards |
|
Record Capacity |
100,000Logs |
|
Display |
2.8-inch TFT Color Screen |
|
Communication |
TCP/IP, USB-Host, WiFi (Optional function) |
|
Standard Functions |
SMS, DTS, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input, Photo ID, Camera, Multi-verification, 12V Output, RS232 Printer (Optional Cable) |
|
Optional Functions |
ID / MF Cards, Work Code, ADMS |
|
Interface for Access Control |
3rd Party Electric Lock, Exit Button, Alarm |
|
Power Supply |
DC 12V 1.5A |
|
Verification Speed |
Less than 1sec |
|
Operating Temp. |
0°c – 45°c |
|
Operating Humidity |
20% – 80% |
|
Dimension |
167.5*148.8*32.2mm (Length*Width*Thickness) |
TDM01
| Model | TDM01 |
| Compatible Time Attendance | FA210, 5000T-C,TFT500, TFT600, TFT900 |
| Communication | USB 1.1 |
| USB | Type-A |
| Temperature Detection Distance | 3~5cm |
| Temperature Unit | ℃ or ℉ |
| Temperature Measurement Range | 32.0-42.9℃ or 89.6-109.22℉. |
| Temperature Measurement Deviation | ±0.3℃ or ±0.54℉. |
| Digital Display Tube | 4 |
| Operating Voltage | 5V |
| Operating Temperature | 15℃-35℃ |
| Operating Humidity | 10%~85% |
| Dimensions | 88*88*54.63mm |
| Weight of the Device TDM01 | 0.17KG |
| Weight of the device TDM01 with Packaging | 0.29KG |
Connection Diagram
