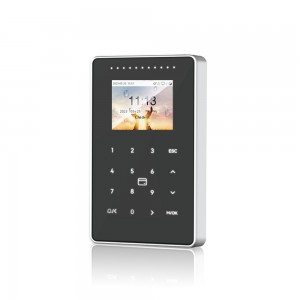

( SC800 ) Proximity Card Access Control And Time Attendance System With IP65 Waterproof and IK04 Vandal Proof

Short Description:

SC800 is a Linux-based and waterproof RFID Access Control terminal that is designed for outdoor application. The model is nicely designed. SC800 adopts a metal midframe housing and a 2.5D tempered glass panel, supporting IP65 waterproof and IK04 vandal proof. Besides, SC800 has a 2.4-inch color screen and a hidden touch keypad to enhance the touchless unlocking experience. SC800 offers the Multi-tech RFID module that supports 125kHz and 13.56MHz card, support H.I.D Prox and H.I.D i.class Multi-Tech RFID Module. In addition, SC800 supports Access Control push communication protocol and it is compatible with UAccess Master or ZKBio CVAccess software. This terminal also includes a Wiegand Input port to connect the external proximity reader and can be act as controller's external reader using a Wiegand Output port.


Product Detail

Product Tags

Brief Introduction:

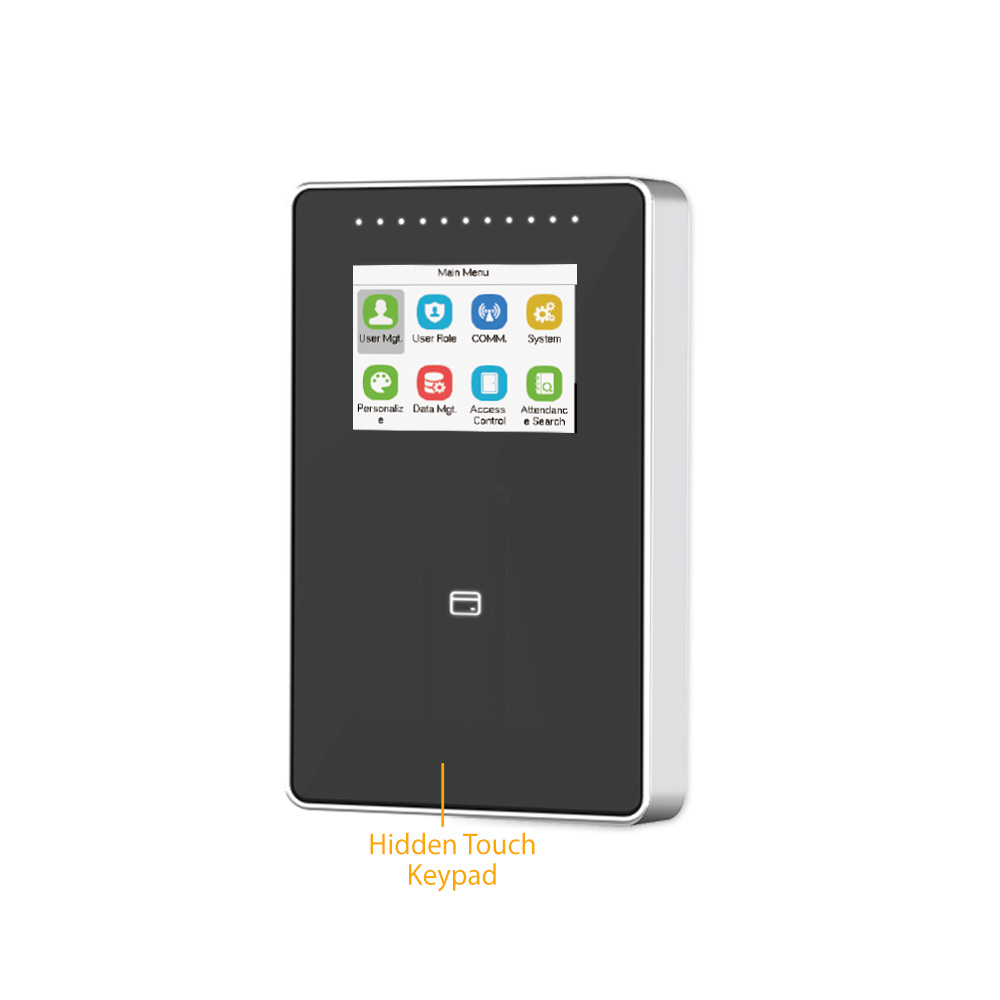

SC800 is a Linux-based and waterproof RFID Access Control terminal that is designed for outdoor application. The model is nicely designed. SC800 adopts a metal midframe housing and a 2.5D tempered glass panel, supporting IP65 waterproof and IK04 vandal proof. Besides, SC800 has a 2.4-inch color screen and a hidden touch keypad to enhance the touchless unlocking experience.



SC800 offers the Multi-tech RFID module that supports 125kHz and 13.56MHz card, support H.I.D Prox and H.I.D  i.class Multi-Tech RFID Module. In addition, SC800 supports Access Control push communication protocol and it is compatible with UAccess Master or ZKBio CVAccess software. This terminal also includes a Wiegand Input port to connect the external proximity reader and can be act as controller’s external reader using a Wiegand Output port.

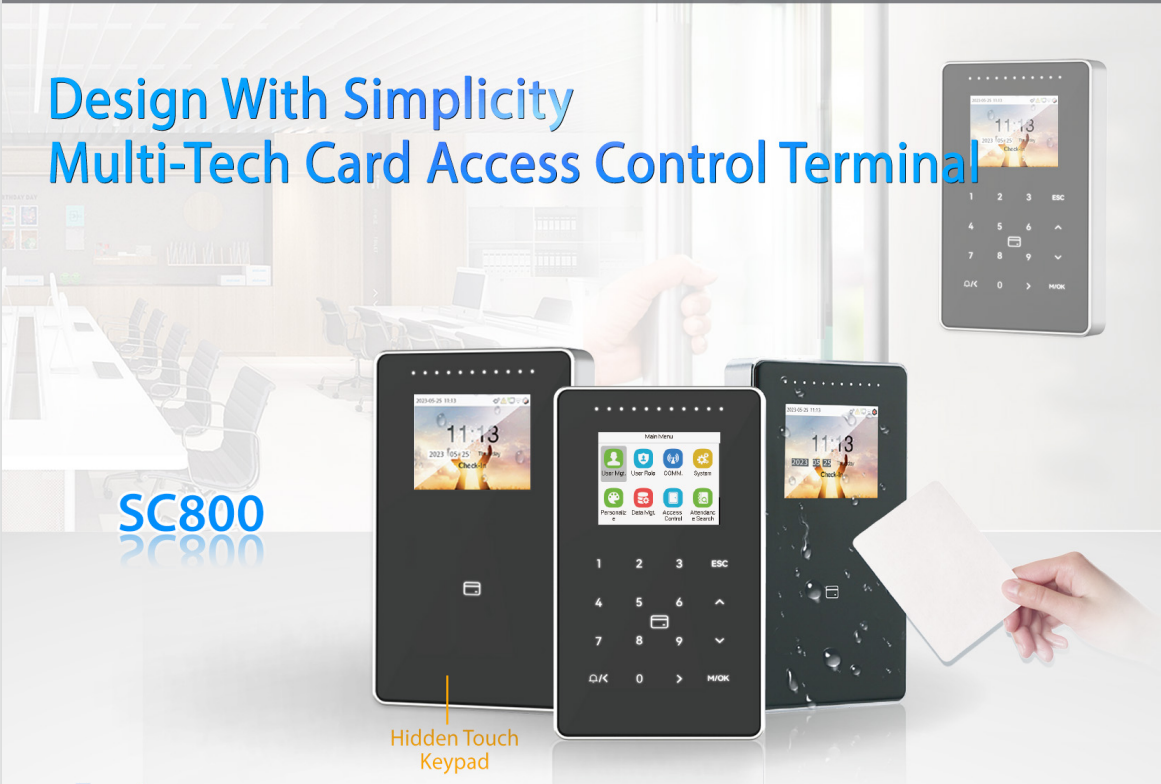

 introduction

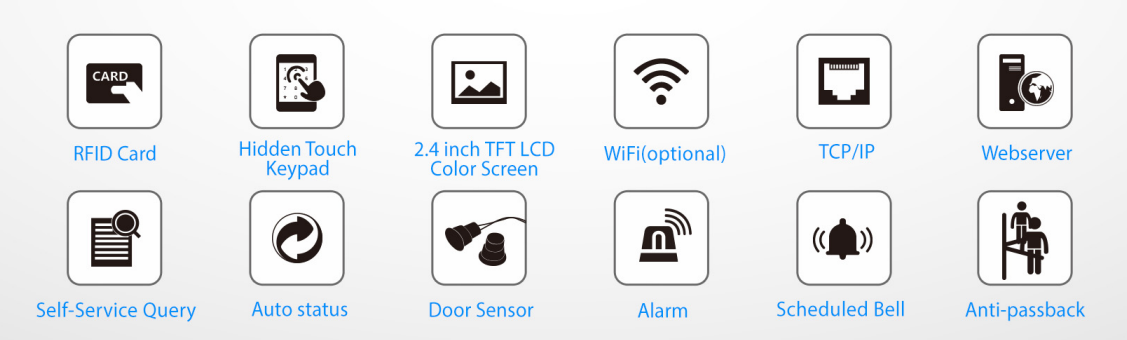

Features:
IP65 Water and Dust resistant,IK04 vandal proof

Supports multiple RFID modules and up to 100+ card types

(including ID/IC/Felica/Legic/DESfire EV1/EV2/H.I.D Prox/H.I.D i.Class/Etc.

Support Access Control push conversion to Time Attendance push

Communication :TCP/IP,Wi-Fi(Optional),Wiegand in&out,RS485,OSDP(Ver2.1.7),RS232(for printer)

Embedded web server for system configuration

 features

Specification:



Model SC800
Type Waterproof Proximity Card Access Control Attendance Terminal
Display 2.4 inch TFT LCD Color Screen
Operation System Linux
Card Capacity 50,000 (Optional:100,000)
Logs Capacity 200,000 (Optional:1000,000)
User Password 6 Digits
RFID Standard Module: Proximity RFID ID cardOptional Multi-Tech Card Module:

Module 1 Support ID&IC&DESFire EV1/EV2;

Module 2 Support ID&IC&DESFire EV1/EV2&Feliac&LEgic&H.I.D Prox;

Module 3 Support ID&IC&DESFire EV1/EV2&Feliac&Legic&H.I.D Prox&H.I.D i.class;

Communication TCP/iP,Wiegand,RS485,OSDP(Ver2.1.7),RS232(only for printer),WiFi(Optional);
Wired Network 10/100Mbps,Auto MDI/MDI-X
Access Control Interface 3rd party electric lock (magnetic locks), Door sensor, exit/release button, alarm,doorbell
Auxiliary Interface 1 AUX input
Indication Light Breathing ligh: White,Status light:Red / Green
Hardware 1GHz Dual Core CPU,DDR2 64M, Flash 256M
Data Protection AES-256 Encryption
Keypad HiddenTouch Keypad
Wiegand Signal Wiegand In/Out
Standard Functions ID card, Web server, Automatic Status Switch,Self-Service Query,DST,14 Digit User ID,Scheduled Bell, Anti-passback,HTTPS,Protocol convert (AC push to TA push)
Optional Functions Wi-Fi, Multi-tech Card Module,Printer
Power Supply DC 12V 3A
Operating Temperature -10 celsius to 55 celsius
Storage Temperature -20 celsius to 60 celsius
Operating Humidity 10% to 90% RH
Dimensions (L*W*D) 143*85*19.8mm
Protocol AC PUSH (default) or TA Push
Web-based software AC PUSH: UAccess Master /ZKBioAccess IVS,CVAccessOr TA PUSH: UTime Master /ZKBioTime8.0
Customization Logo Boot logo can be added to menu key; Silkscreening printing logo support one single color printing;

Application:

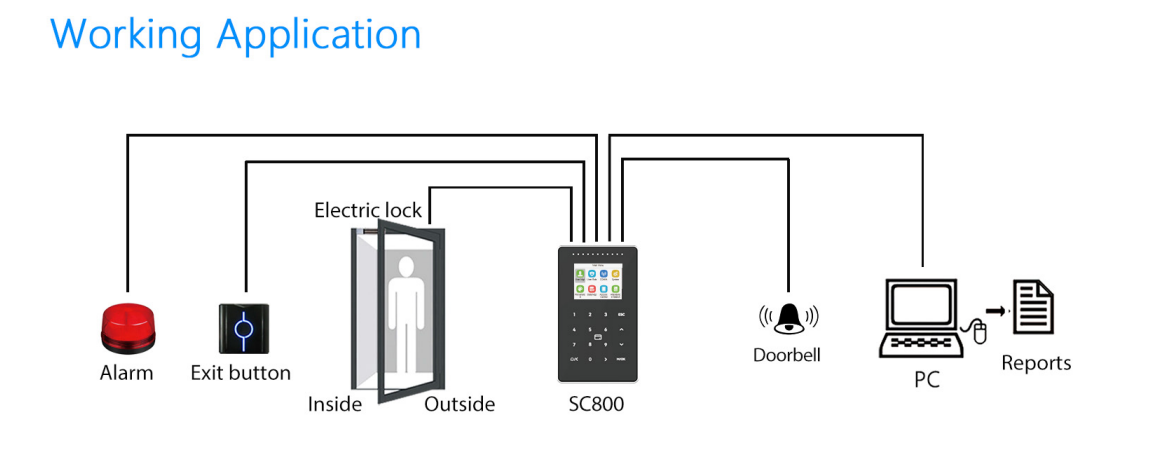

working applicationWeb-based Attendance Software:

We have different types of  softwares.

One is web-based attendance software UTime Master ,it is with time and attendance function, simple access control function, and payroll function. The central server software can manage biometric devices from different branches or cities.We have demo link for you to test, welcome to contact us for details.

The other is web-based professional access control software ZKCVACCESS IVS, our UAccess Master.

Here below are some introductions about UTime Master or BioTime8.0.

Web-Based Time Attendance Access Control Software :

UTime Master introduction

UTime Master is Real-Time Monitor:
The attendance records/data can be uploaded to software in real time.

UTime Master functions

UTime Master software supports many languages:
Chinese, English, Spanish, Portuguese, French, German, Arabic, Russian, Hebrew, Indonesian, Thai, etc. Users can select the language they need in the software.

UTime Master-5

Software has many attendance reports
Such as Transaction reports, Scheduling Reports, Daily Reports , Monthly Reports

Many attedance reports
